Troubleshooting Common Electrical Faults During PAT Testing
Portable Appliance Testing (PAT) is an essential safety process to ensure electrical appliances remain safe for everyday use. While testing identifies potential risks, one of the most valuable aspects of PAT is troubleshooting common electrical faults. By understanding these issues, businesses and individuals can address them quickly, minimize downtime, and maintain compliance with safety regulations. To Know More Click Here

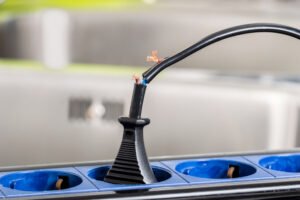

1. Damaged Power Cords and Plugs
One of the most common issues is frayed, cut, or twisted power cords. Loose wires inside plugs or cracked plug casings also pose risks. Inspect cords visually and use PAT instruments to verify continuity and insulation integrity.
Fix: Replace damaged cables or plugs immediately. Minor loose connections inside plugs can often be tightened safely by a qualified person.
2. Failed Earth Continuity
Appliances with metal casings rely on proper earthing for safety. A failed earth continuity test indicates that the protective earth path is broken, which can make the appliance dangerous.
Fix: Check the earth wire connection inside the plug and at entry points to the appliance. If damaged, replace the cord or rewire correctly. To Know More Click Here
3. Insulation Resistance Failures
Low insulation resistance often suggests moisture ingress, degraded insulation, or damaged internal wiring. This allows current leakage and increases the risk of electric shock.
Fix: Dry the equipment thoroughly if moisture is suspected. If the insulation itself is compromised, the appliance should be repaired by a professional or replaced.
4. Polarity Issues
Incorrect wiring inside plugs—such as live and neutral being reversed—can cause polarity failures during testing. This is dangerous and must be corrected immediately.
Fix: Rewire the plug correctly, ensuring live (brown), neutral (blue), and earth (green/yellow) wires are connected to their proper terminals.
5. Fuse Problems
PAT testing often reveals blown or incorrect fuses. Using the wrong fuse rating either provides inadequate protection or causes unnecessary failures.
Fix: Replace the fuse with the correct rating as recommended by the manufacturer. Always use high-quality fuses approved for electrical safety. To Know More Click Here
6. Overheating and Burn Marks
Signs of overheating, such as discoloration or burn marks on plugs and sockets, suggest loose connections, overloading, or internal faults.
Fix: Investigate the root cause, replace damaged components, and avoid overloading sockets with multi-plug adapters.
7. Appliances Failing Functionality Tests
Some items may pass electrical safety checks but fail operational checks. This usually points to internal component faults rather than safety risks.
Fix: Decide whether repair is economical. If not, replacement is the safest option.
Best Practices for Troubleshooting PAT Faults
- Record and Report: Always log faults found during testing for compliance and follow-up.
- Repair vs. Replace: Evaluate the cost and safety before repairing faulty equipment.
- Stay Compliant: Ensure all work is carried out by trained personnel to meet legal safety standards. To Know More Click Here
Conclusion
Troubleshooting electrical faults during PAT testing is about more than ticking boxes—it ensures appliances remain safe, functional, and compliant. By recognizing common issues like damaged cords, failed earth continuity, and blown fuses, testers can prevent accidents and improve workplace safety. Regular PAT testing combined with effective troubleshooting is a smart investment in both compliance and peace of mind.
