Tools and Equipment Needed for PAT Testing
Portable Appliance Testing (PAT) is a crucial part of workplace and home safety. It involves checking electrical appliances to ensure they are safe to use and meet required safety standards. PAT testing helps prevent accidents such as electrical shocks, fires, and equipment damage, while ensuring compliance with health and safety regulations. One of the most important aspects of effective PAT testing is having the right tools and equipment. Without them, testing can be inaccurate, incomplete, or unsafe. In this blog, we’ll explore the essential tools and equipment needed for PAT testing and why each is important. To Know More Click Here
1. PAT Tester – The Heart of Testing
The PAT tester is the central tool for any PAT testing procedure. It is designed to test a wide range of electrical appliances for safety. Depending on your requirements, PAT testers come in different types:
-
Single-function testers: These are basic devices that perform simple pass/fail tests. They are ideal for small businesses or home users with fewer appliances.
-
Multifunction testers: Advanced devices that perform multiple tests such as earth continuity, insulation resistance, and leakage current tests. These are suitable for larger organizations or electricians handling a high volume of appliances.
A reliable PAT tester ensures accurate readings, reduces the risk of false results, and ensures safety compliance.

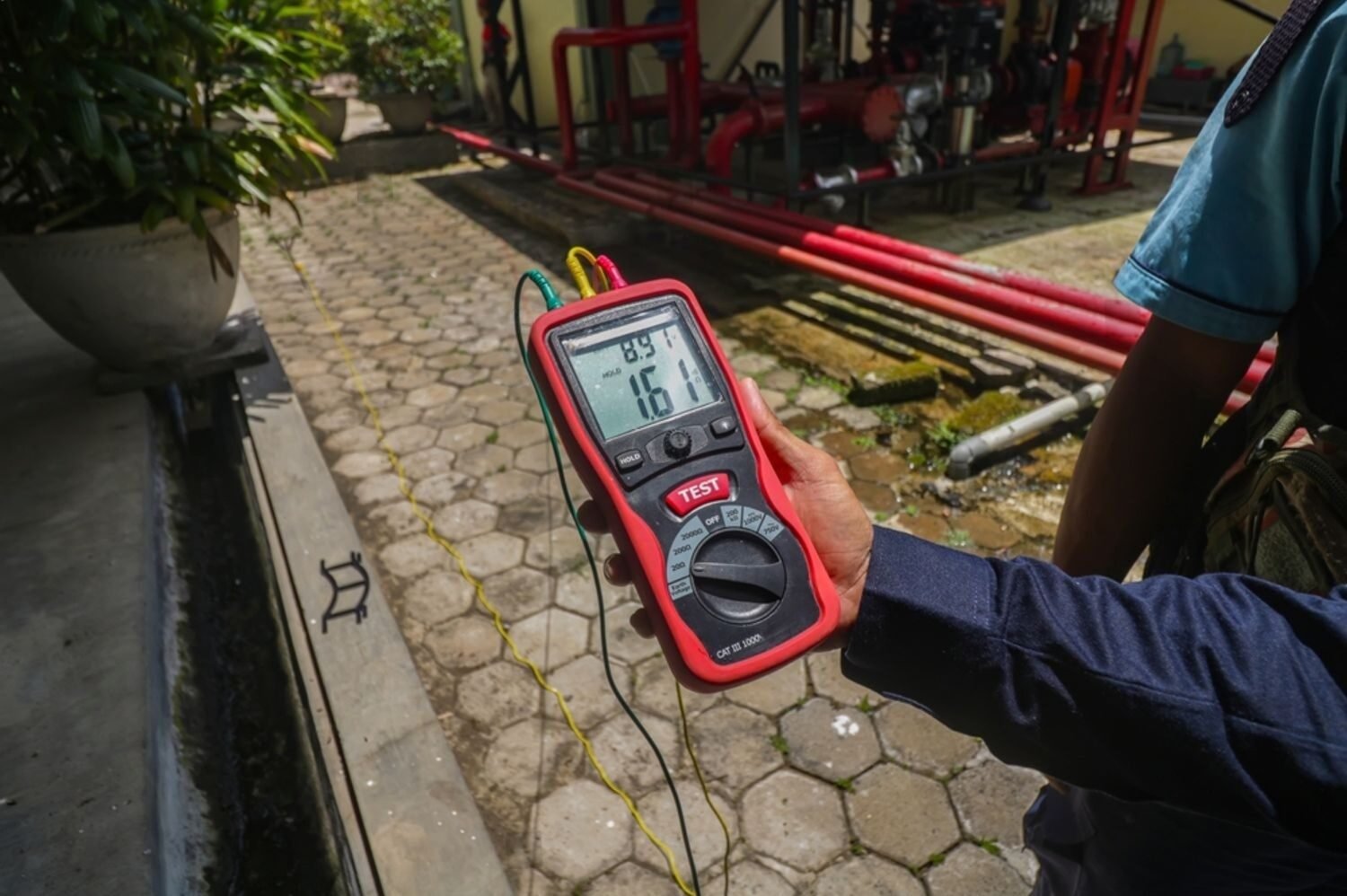

2. Earth Continuity Tester
A good earth connection is essential for preventing electric shocks if a fault occurs. The Earth Continuity Tester checks whether the appliance’s earth connection is intact and functioning correctly. Modern PAT testers usually include this test in their multifunctional settings, but standalone earth testers are also useful for specific inspections. To Know More Click Here

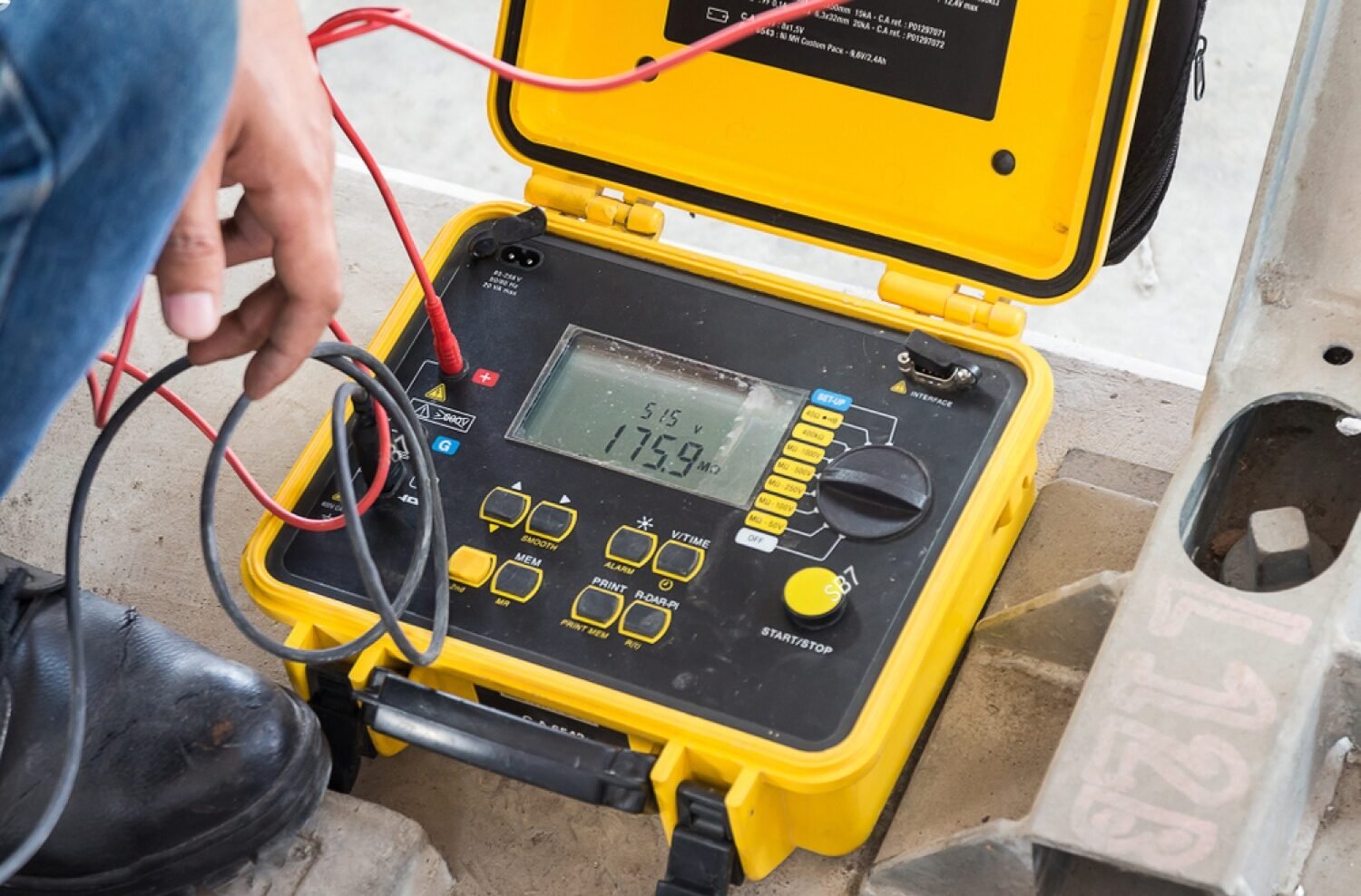

3. Insulation Resistance Tester (Megger)
The insulation resistance tester, often called a megger, measures the resistance of insulation around wires within an appliance. Insulation prevents electricity from leaking and causing shocks or short circuits. Poor insulation can be a serious hazard, especially in older or frequently used equipment. The megger helps identify potential risks before they become dangerous.
4. Visual Inspection Tools

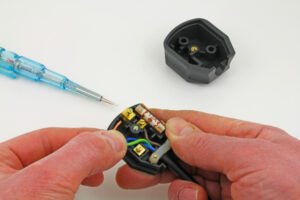

Before performing any electrical tests, a visual inspection is conducted. Many faults are visible and can be detected without complex equipment. Essential visual inspection tools include:
- Flashlight: To inspect plugs, sockets, and internal components for cracks, wear, or damage.
- Screwdrivers: To open plug covers or appliance casings for detailed checks.
- Multimeter: To check basic electrical parameters such as voltage, continuity, and polarity.
Visual inspection is a critical step to ensure appliances are not obviously damaged or unsafe before conducting PAT tests.
5. Labeling Equipment
Once an appliance has been tested, it must be clearly labeled with its status. Labeling equipment such as a label printer or pre-printed labels helps indicate:
- Whether the appliance passed or failed the test
- The date of the test
- The date when the next test is due
Clear and visible labels help organizations track testing schedules and ensure ongoing safety compliance.
6. Test Leads and Probes
Test leads and probes connect the PAT tester to the appliance being tested. High-quality leads are important because they ensure accurate readings and reduce the risk of damaging appliances during testing. They are available in various types and lengths, depending on the testing setup.
7. Laptop or Software (Optional but Useful)
For advanced testing, some PAT testers come with software integration. Using a laptop or tablet, test results can be logged, stored, and analyzed efficiently. This is particularly useful for large organizations with hundreds of appliances. Software tools allow:
- Automated record-keeping
- Generating detailed reports
- Tracking test histories for compliance audits. To Know More Click Here
Conclusion
Proper PAT testing requires more than just a tester – it demands a full range of tools and equipment to ensure safety and accuracy. From PAT testers to insulation testers, visual inspection tools, and labeling equipment, each tool plays a vital role in the process. Investing in high-quality equipment not only ensures the safety of employees and users but also keeps businesses compliant with legal and safety regulations.
By understanding and using the right tools, you can make PAT testing more effective, efficient, and reliable.
